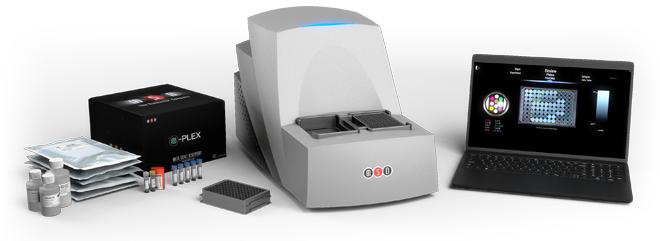

MESO QuickPlex Q 60MM
Your Personal MSD Reader
Designed to allow for every scientist to have their own reader, the MESO QuickPlex Q 60MM instrument is built for everyone, Your Personal MSD Reader. It delivers attomolar sensitivity with 5 logs of dynamic range. Using MSD's newest fast-processing QuickPlex Ultra plates, the MESO QuickPlex Q 60MM is compatible with over 600 assays with multiplexing capabilities.
Precise
The ultra-sensitive, low noise CCD camera captures ultra-clean electrochemiluminesence (ECL) signal, resulting in industry-leading dynamic range for superior analytical performance.
Reliable
With no fluidics, the MESO QuickPlex Q 60MM is a robust instrument that is easy to self-install and requires minimal maintenance.
Compact
A compact footprint enables the MESO QuickPlex Q 60MM to fit into tight environments.
With read times as short as 83 seconds on MSD's QuickPlex Ultra products, MESO QuickPlex Q 60MM with the included laptop computer powered by lightweight and stable Windows 10 IoT Enterprise LTSC has the flexibility to
meet your lab's needs.
Supports MSD's full suite of off-the-shelf QuickPlex and QuickPlex Ultra 96-well assay kits, as well as expert in-lab support for user-developed
assays.
Explore the suite of QuickPlex assays

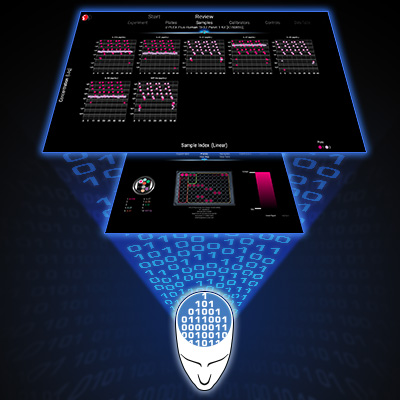

The Methodical Mind Experience gives you complete control. Enjoy our streamlined, automated workflow, from experimental design to advanced data analysis, and invite collaborators to work on the same datasets seamlessly.
Learn more about Methodical Mind
Request a quote
For Research Use Only. Not for use in diagnostic procedures.
-
Specifications
-
MesoAdvantage Plans
-
Ordering Information
-
Resources
| Instrument Catalog Number |
|
IC1AA-0 |
| Detection System |
|
Cooled scientific-grade CCD camera and precision custom lens assembly |
| Multiplexing Capability |
|
Up to 10 assays per well |
| Plate Compatibility |
|
MSD 96-well QuickPlex and QuickPlex Ultra plates |
| Sensitivity |
|
Limits of detection as low as 0.05 to 1 pg/mL |
| Dynamic Range |
|
5 logs |
| Plate Read Time |
|
1 min 23 sec |
| Plate Stacker Capability |
|
5 plates on the input stack and 5 plates on the output stack |
| Operating Environment |
|
68 – 78°F (20 – 26°C) at 10% – 80% relative humidity (non-condensing)
maximum altitude of 6500ft (2000m) |
| Storage Conditions |
|
0°F (-18°C) @ 50% relative humidity to 122°F (50°C) @ 85% relative humidity (non-condensing) |
| Weight |
|
36 lbs (16 kg) |
| Dimensions |
|
13 in x 23 in x 14 in (33 cm x 58 cm x 36 cm) |
| Computer |
|
Dell Inspiron with Windows 10 LTSC 2021 |
| Power |
|
100-240 VAC 50/60 Hz 250W max
|
| ISO Certifications |
|
MSD’s QMS is ISO 9001:2015 certified |
| Network |
|
The instrument's computer must be connected to the network using either the wireless or wired network adapter. The Methodical Mind software requires an
internet connection to the methodicalmind.com domain via HTTPS port 443. |
| Regulatory |
|
For Research Use Only. Not for use in diagnostic procedures. Meets UL, CSA, FCC, and applicable IEC safety and EMC standards and carries the CE, UKCA, and cSGSus marks in addition to the crossed out wheelie bin symbol with bar (WEEE). Applicable China RoHS information is also found in the instrument label and in the safety guide. Complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed. 3. as described in Laser Notice No. 56, dated May 8, 2019. Please contact MSD for more information on regulatory certifications. |
Standard Limited Warranty
A standard limited warranty is included for the first year with the purchase of a MESO QuickPlex Q 60MM instrument. The
standard limited warranty includes:
- Defects in materials and workmanship
- Warranty repairs
Any repairs outside the standard limited warranty will be charged separately.
MesoAdvantage Plans
MesoAdvantage Gold, MesoAdvantage Silver, and MesoAdvantage Academic plans are available to protect your
instrument. MesoAdvantage Plans cover maintenance and repairs as well as Methodical Mind seat licenses. Pre-contract inspections are required in the case of a lapse of coverage before a MesoAdvantage Plan can be purchased.
| Service |
Limited
Warranty |
|
MesoAdvantage Plans |
|
Academic
|
Silver
|
Gold |
| Defects in materials and workmanship |
● |
● |
● |
● |
| Parts, labor, and travel charges for repairs |
● |
●* |
● |
● |
| Preventative maintenance (2 per year) |
|
|
|
● |
| Preventative maintenance (1 per year) |
|
|
● |
|
| Rapid response (24-48 hours) |
|
|
|
● |
| Rapid response (48-72 hours) |
|
● |
● |
|
| Relocation services (1 per year, deinstallation, reinstallation and testing) |
|
|
|
● |
| Methodical Mind Enterprise software license (10 seats) |
● |
● |
|
● |
| Methodical Mind Enterprise software license (5 seats) |
|
|
● |
|
* MESO QuickPlex Q60MM instruments use a depot service model for limited warranty and academic MesoAdvantage Plans.
| Service |
Catalog Number |
Price |
| MESO QuickPlex Q 60MM Instrument |
IB0AA-1 |
$99,000 |
| MesoAdvantage Gold Service Plan |
SBAAC-1 |
$17,500 |
| MesoAdvantage Silver Service Plan |
SBAAB-1 |
$11,900 |
| MesoAdvantage Academic Service Plan |
SBAAA-1 |
$5,000 |
| MESO QuickPlex Q 60MM Performance Qualification Kit |
RA2QQ-1 |
$1,400 |
